Ceiling Mounted Lat Pulldown for Space-Saving Home Gym Training
The Ceiling Mounted Lat Pulldown is a compact cable pulley system for upper body strength training at home. Mounted directly to the ceiling, it saves floor space while allowing effective lat pulldowns, arm training and pulling exercises with adjustable plate-loaded resistance.
Key Features
Compact Cable Training Without a Full Machine
Designed for home gyms that need effective cable exercises with minimal space requirements.
01 / Space Saving
Ceiling-Mounted Pulley System
The compact ceiling-mounted design gives you lat pulldown training without needing a large floor-standing machine.
02 / Movement
Smooth Grooved Pulleys
Large grooved pulleys guide the cable securely and support smooth movement during controlled repetitions.
03 / Resistance
Plate-Loaded Training
The 22 mm loading pin allows you to add standard weight plates and adjust resistance to your training level.
Compact Setup
Maximum Training Options With Minimal Space

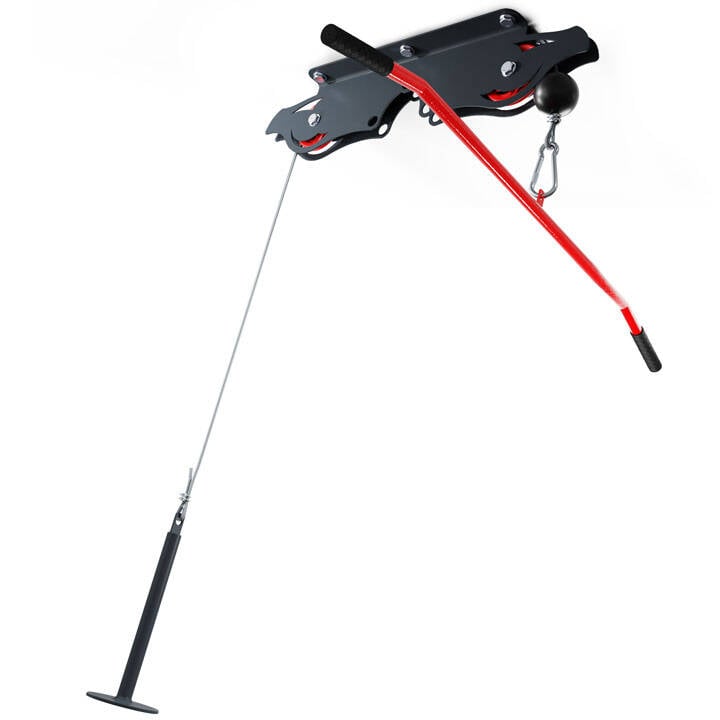

This ceiling mounted lat pulldown is ideal if you want cable training but do not have space for a stationary lat pulldown machine. The pulley system is fixed to the ceiling and keeps your floor area free.
After training, the detachable components can be removed quickly, making the setup practical for compact home gyms, garages and multi-use rooms.
Pulley System
Smooth Cable Guidance for Controlled Repetitions

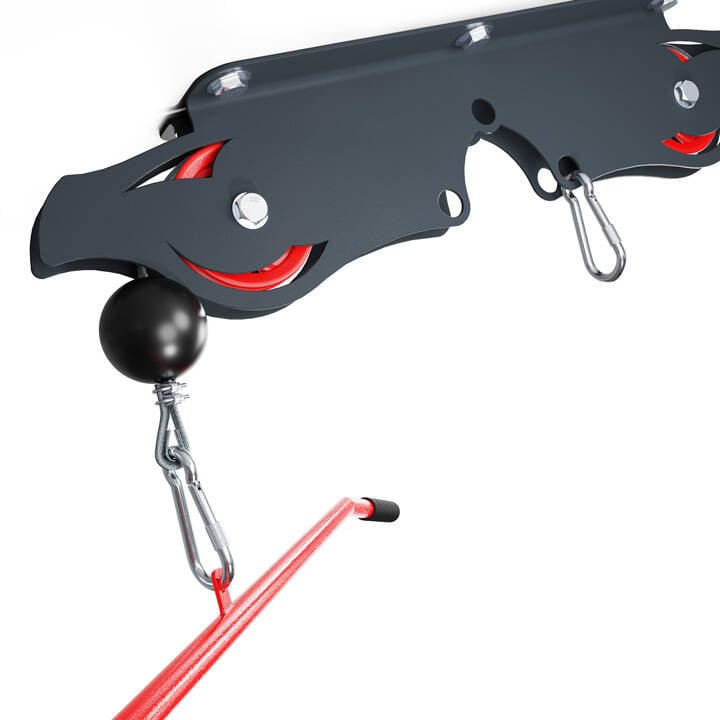

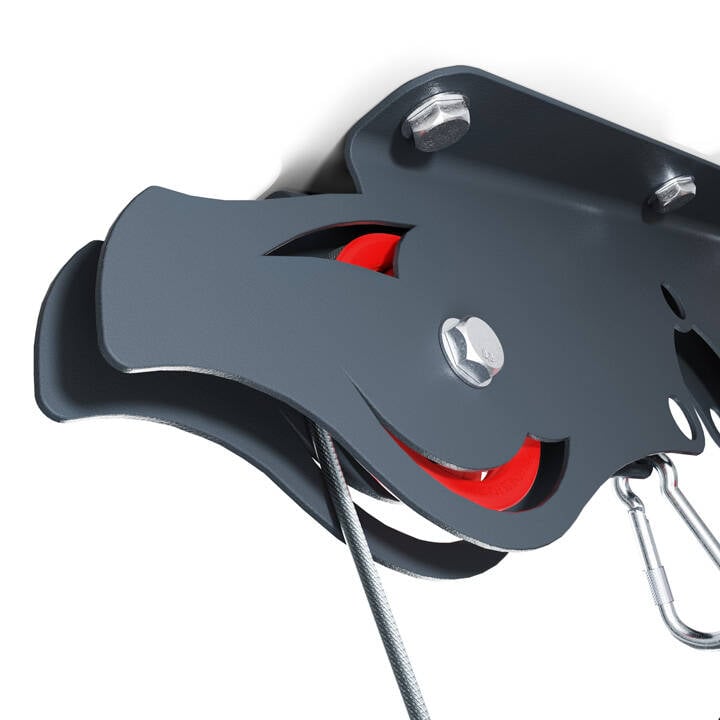

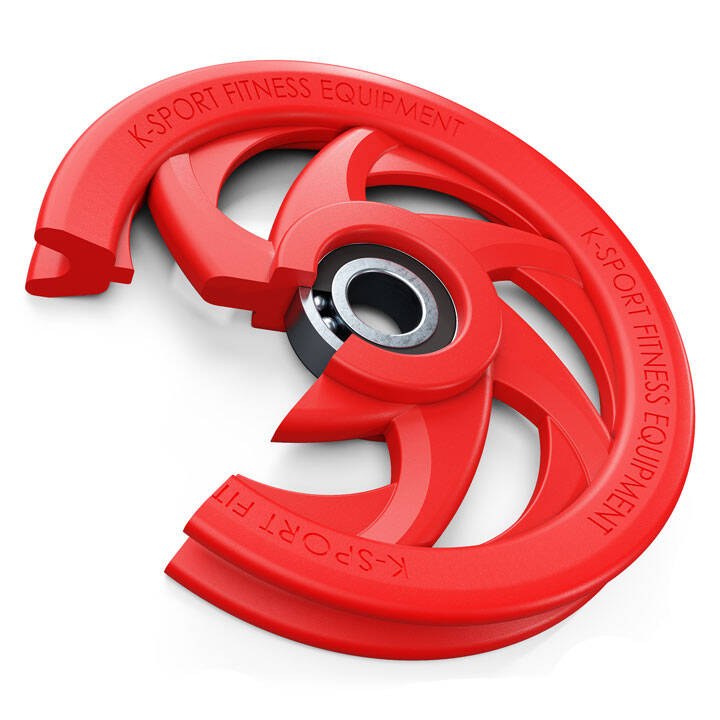

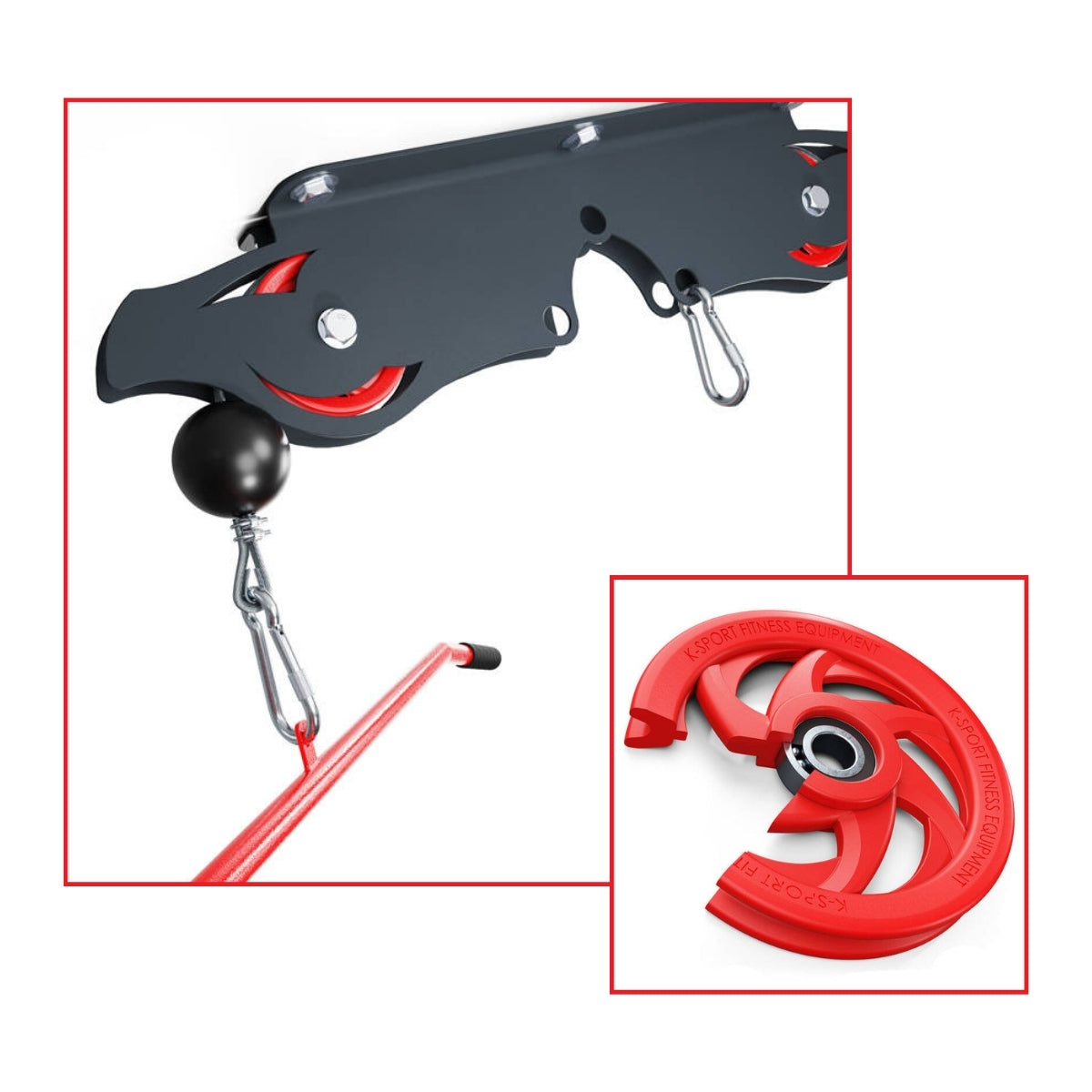

The lat pulldown uses robust grooved pulleys with a maximum diameter of 110 mm. These guide the cable securely and help reduce unwanted cable movement during exercise.
The pulley design supports smooth weight movement, making your training more controlled and comfortable.
Training Bar
Wide Lat Pulldown Bar With Secure Grip

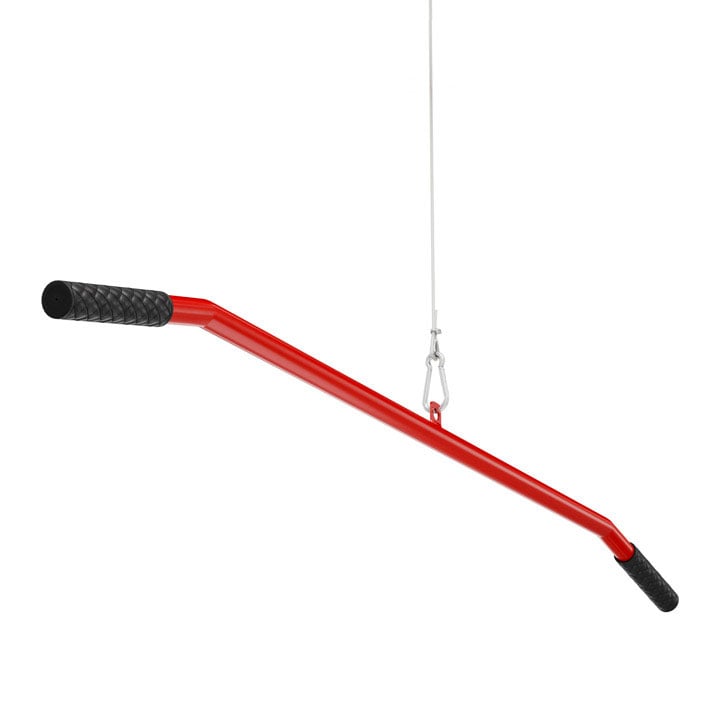

The included lat pulldown bar has a total width of 1,100 mm and rubber-coated grip areas for better control during pulling exercises.
Use it for lat pulldowns, straight-arm pulldowns and other upper body exercises focused on back, arms and shoulders.
Resistance
Adjustable Plate-Loaded Resistance

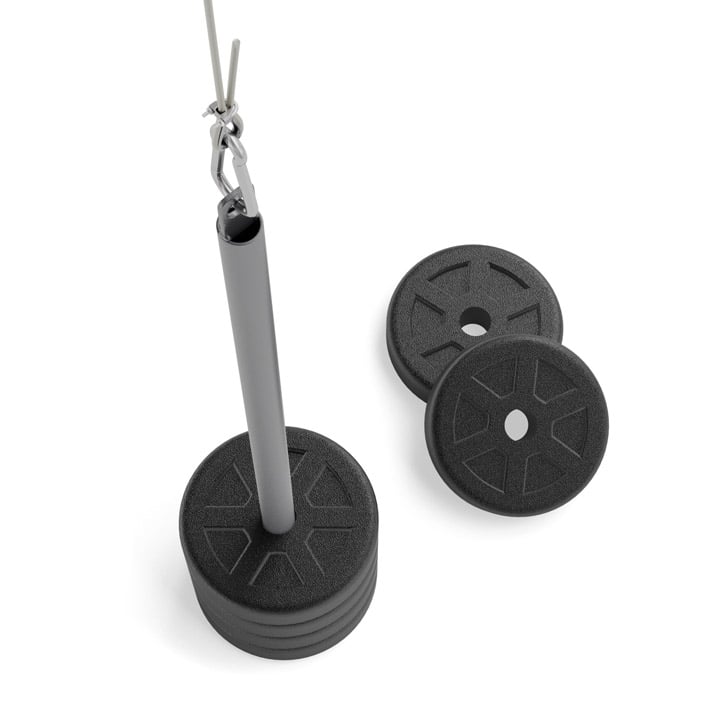

The weight holder has a 22 mm diameter and is compatible with standard weight plates. This allows you to increase or reduce resistance depending on your progress and training goal.
The system supports a maximum load capacity of 140 kg, making it suitable for demanding home strength training.
Your Cable Setup
A Space-Saving Alternative to a Lat Pulldown Machine
The Ceiling Mounted Lat Pulldown gives you effective cable training in a compact format. With a ceiling-mounted pulley system, included lat pulldown bar, loading pin and mounting kit, it is a practical choice for focused upper body training at home.

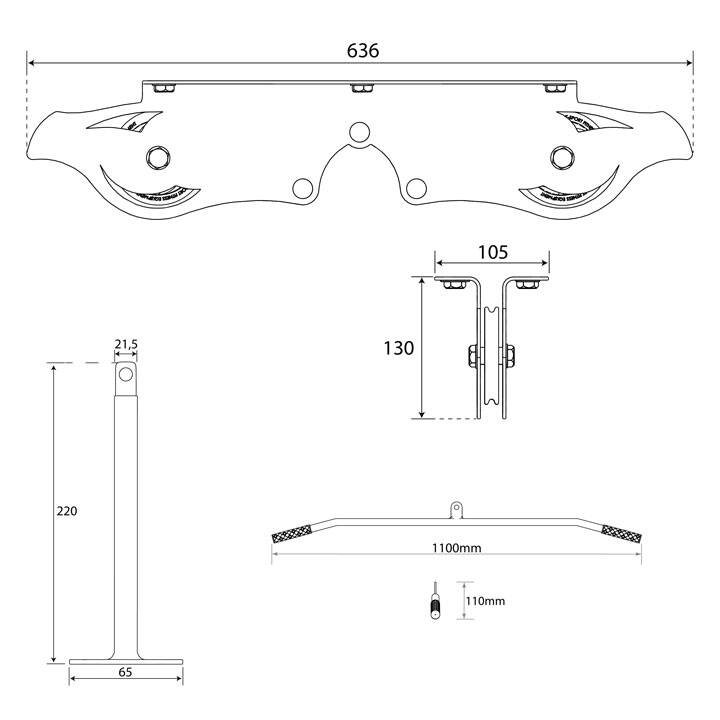

Technical Details
Specifications
| Metric | Imperial | |
|---|---|---|
| Pulley Unit Length | 636 mm | 25.0 in |
| Pulley Unit Width | 105 mm | 4.1 in |
| Pulley Unit Height | 130 mm | 5.1 in |
| Load Bar Diameter | 22 mm | 0.9 in |
| Load Bar Height | 220 mm | 8.7 in |
| Lat Pulldown Bar Width | 1,100 mm | 43.3 in |
| Handle Height | 110 mm | 4.3 in |
| Total Weight | approx. 6 kg | approx. 13.2 lbs |
| Maximum Load Capacity | 140 kg | 308.6 lbs |
| Cable Length | 2,500 mm | 98.4 in |
| Cable Diameter | 4 mm | 0.2 in |
| Coating | Powder-coated | |
| Mounting | Mounting kit with 8 sturdy anchors | |
Expand Your Cable Exercises
Add compatible handles, ropes and cable attachments for more training variety.
Shop Handles →
Add Weight Plates
Use compatible weight plates to increase resistance and progress your training.
Shop Weights →What's in the Box
Delivery Contents
| Packages | 1 package | |

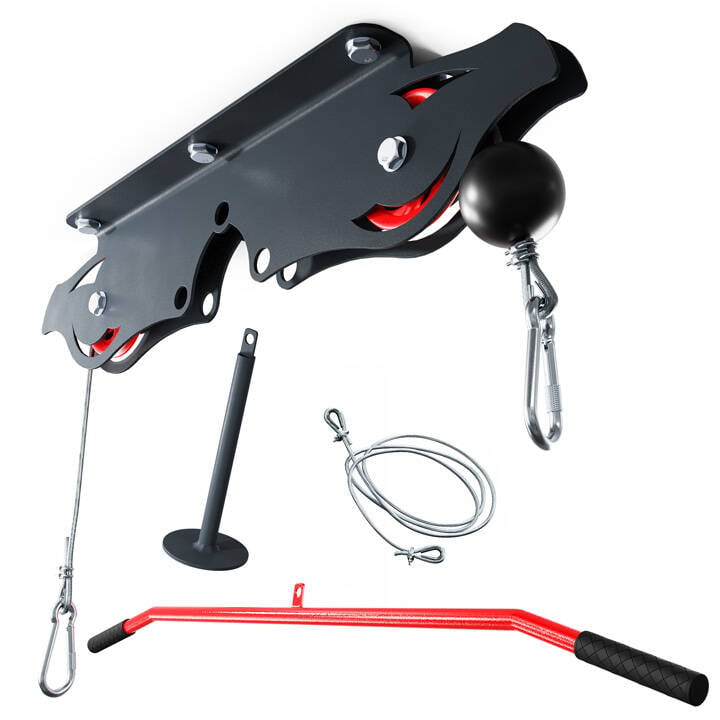

| Included | Ceiling pulley unit, lat pulldown bar U002, cable, loading pin and assembly kit | |
| Mounting | Mounting kit with 8 sturdy anchors included | |
| Tools Required | Tools not included | |
K-Sport UK - Safety instructions
Application Information:
Please use the product only in its intended manner for home use. Any other use may result in damage to the product or its surroundings. Rebuilding or modifying the product will compromise product safety. Caution: Risk of injury! Please also observe the assembly and safety instructions supplied.
Usage:
This training device should only be used by adults! Extreme, incorrect and/or unplanned training can cause damage to health! Always start the training sessions with a low load and increase it evenly and gently during the training. You should warm up sufficiently before training.
Maintenance and care:
Check all parts for damage and tight fit before each use. If necessary, clean the appliance with a damp cloth and mild soap. Wipe with clean water and allow to dry completely before use.
Disposal:
This appliance should NOT be disposed of with household waste. For proper disposal, please contact the public collection points in your community.
DIFFICULTY:
P2Grab the lat bar with an overhand grip and take a big step back.
P3Bend your knees, slightly lean your upper body backward, and maintain a slight arch in your lower back.
A2Ensure the power comes from your back rather than primarily from your arms.
A3Hold the contraction for a brief moment.
A4Release the tension and slowly and controlledly guide the bar back towards the cable machine. Keep your back straight throughout the entire movement.
| Muscle Groups: | |
| Training Equipment/Accessories: | Cable Machine Lat Bar |
